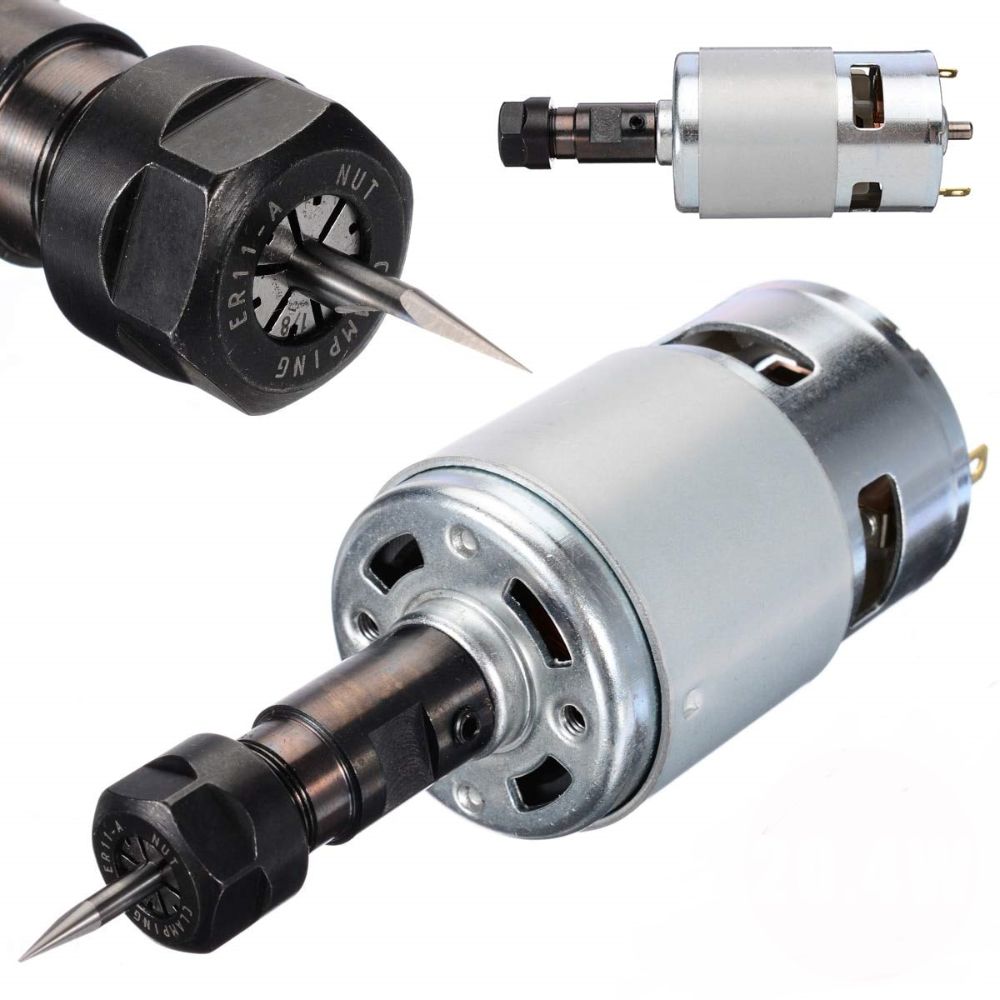

مجموعه اسپیندل 12V24V DC 775 همراه با سه نظام 1.5mm الی 10mm

مجموعه اسپیندل ۱۲V24V DC 775 همراه با سه نظام ۱.۵mm الی ۱۰mm

Motor step height: 4.5mm
Motor step diameter: 17.5mm
Output shaft length: 16mm (axis length above the step level)
Shaft diameter: 5mm round shaft
Motor diameter: 42mm
Motor length: 66.5mm
Motor tail step height: about 11mm
Motor tail shaft length: about 5mm
Pitch of mounting hole: approx. 29mm
Mounting hole diameter: M4 screw
Rated voltage: 24V
Rated voltage: between 12V and 30V
Starting current: 4-(1A 2A is fixed)
Working current is 300ma at 12v, and 24mA working current is 400ma. It is recommended to use 24v, which is enough.
Speed: 12V3800 rev / min, 24V 7600 rev / min
